Force Application Device (FAD)

Test tool for FMVSS 210 seat belt anchorage testing, offered in two sizes (FAD1 and FAD2) to fit standard and narrow designated seating positions, available for rent or purchase.

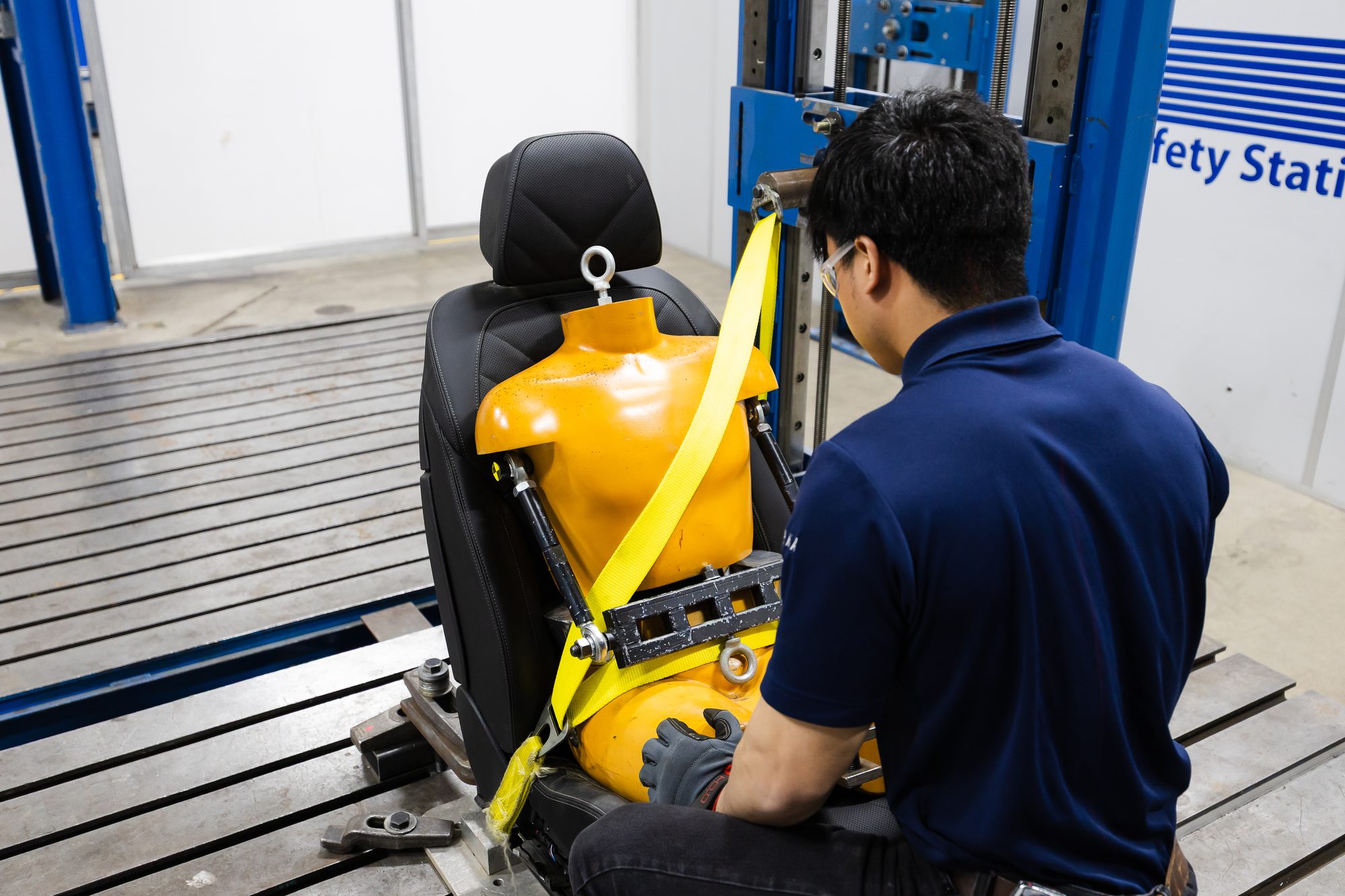

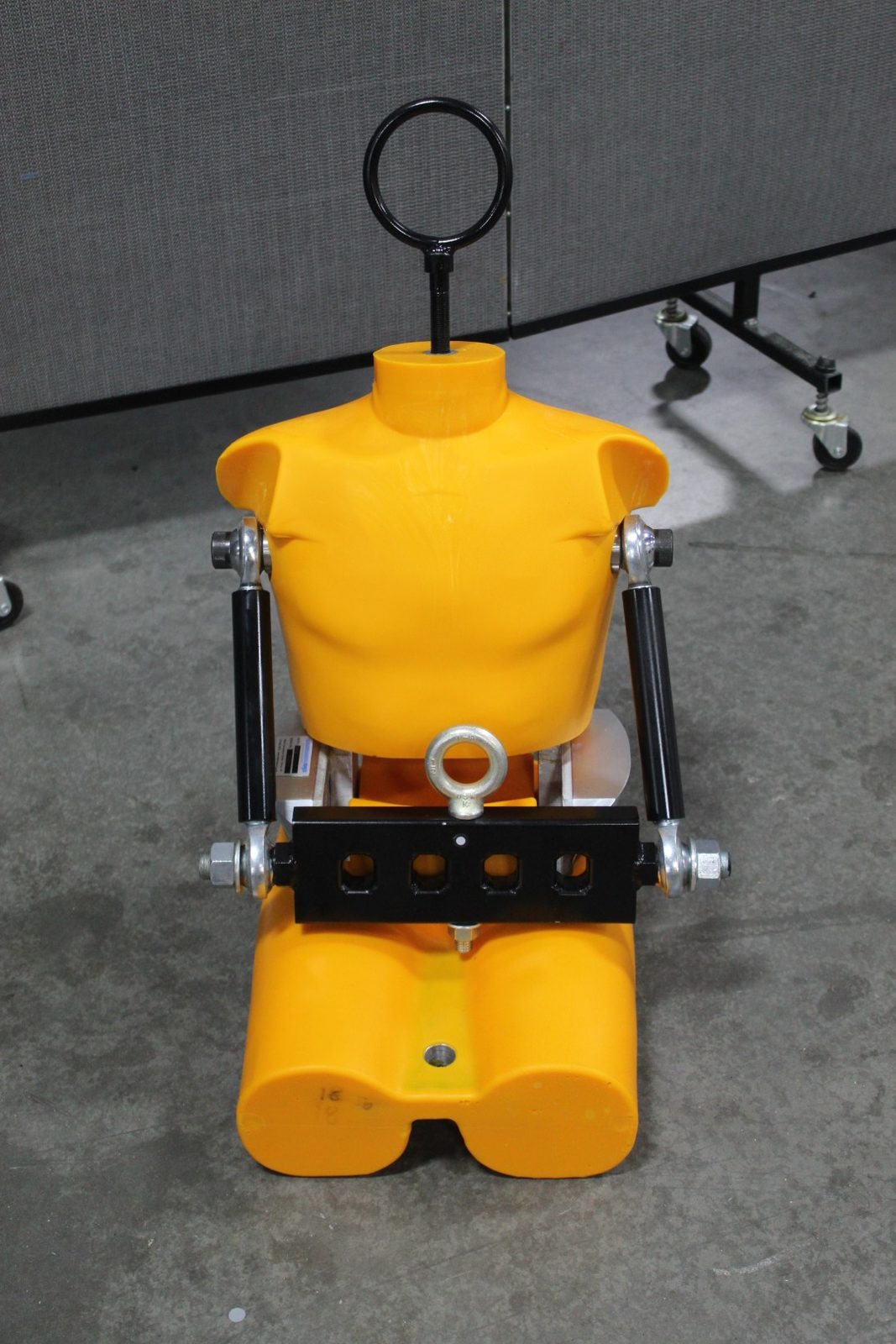

The Force Application Device (FAD) is used as a test tool for FMVSS 210, the Federal Motor Vehicle Safety Standard for seat belt assembly anchorages. MGA has successfully developed prototypes to ensure readiness for future industry updates.

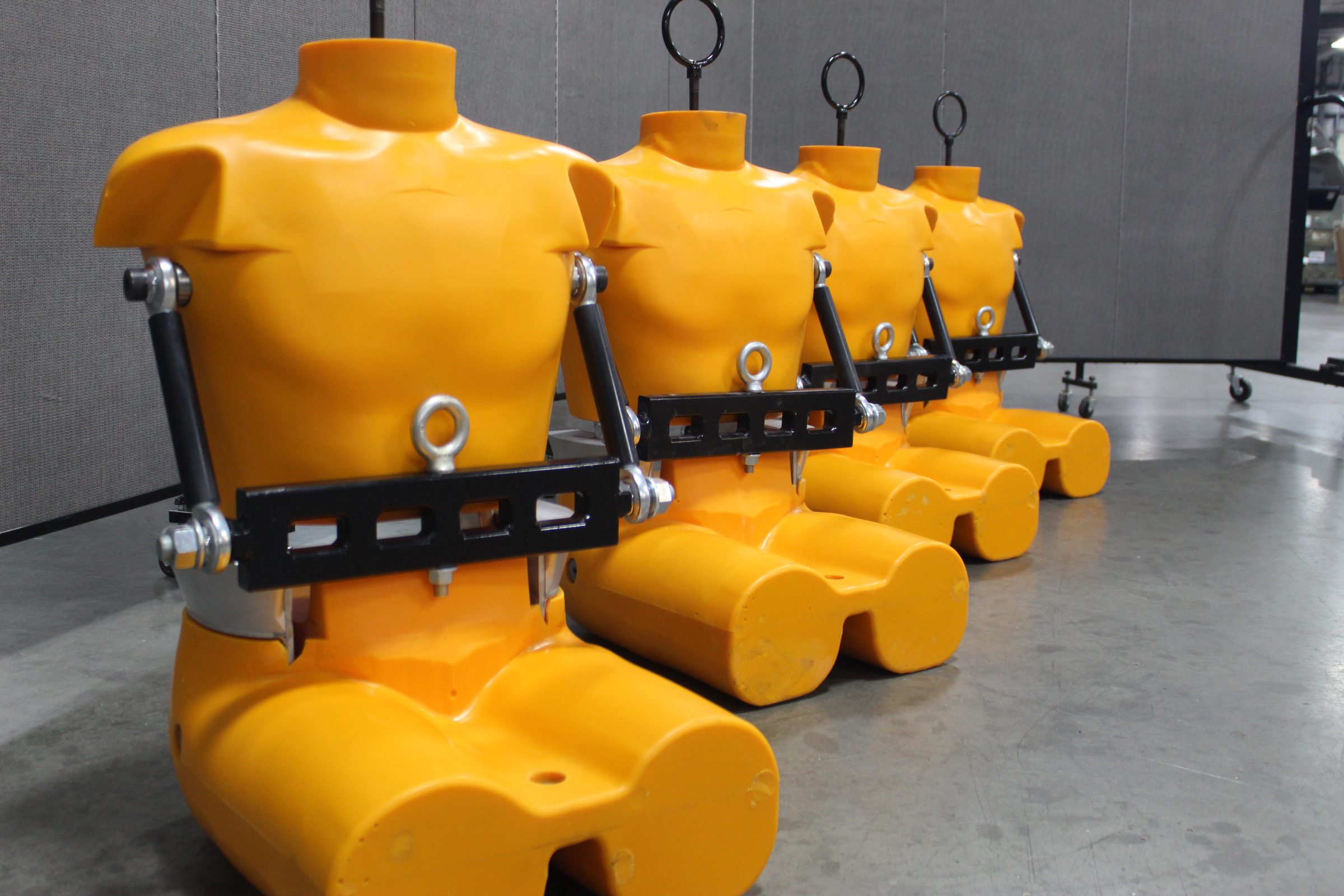

The FAD1 is designed for use in standard designated seating positions (DSP) where sufficient space is available, making it suitable for most front and rear outboard seating locations in passenger cars and multipurpose vehicles.

The FAD2 is the smaller version of the FAD used as a test tool for FMVSS 210. The FAD2 is designed to enable testing in designated seating positions that are too narrow for the larger FAD1, such as some rear center seats in passenger cars and multipurpose vehicles.

The FAD1 and FAD2 are available for rent or purchase. Visit our rental site for more information and to inquire.

No items found.

Body Block Determination

  • Utilization of standard body blocks in accordance with FMVSS 210 requirements
  • Use of MGA's body block positioning aid device to support the torso block placement
  • Integration of Coordinate Measuring Machine (CMM) systems to capture body block position at pre-load
  • Validation of setup prior to load application to ensure compliance with regulatory requirements

MGA Engineering Support

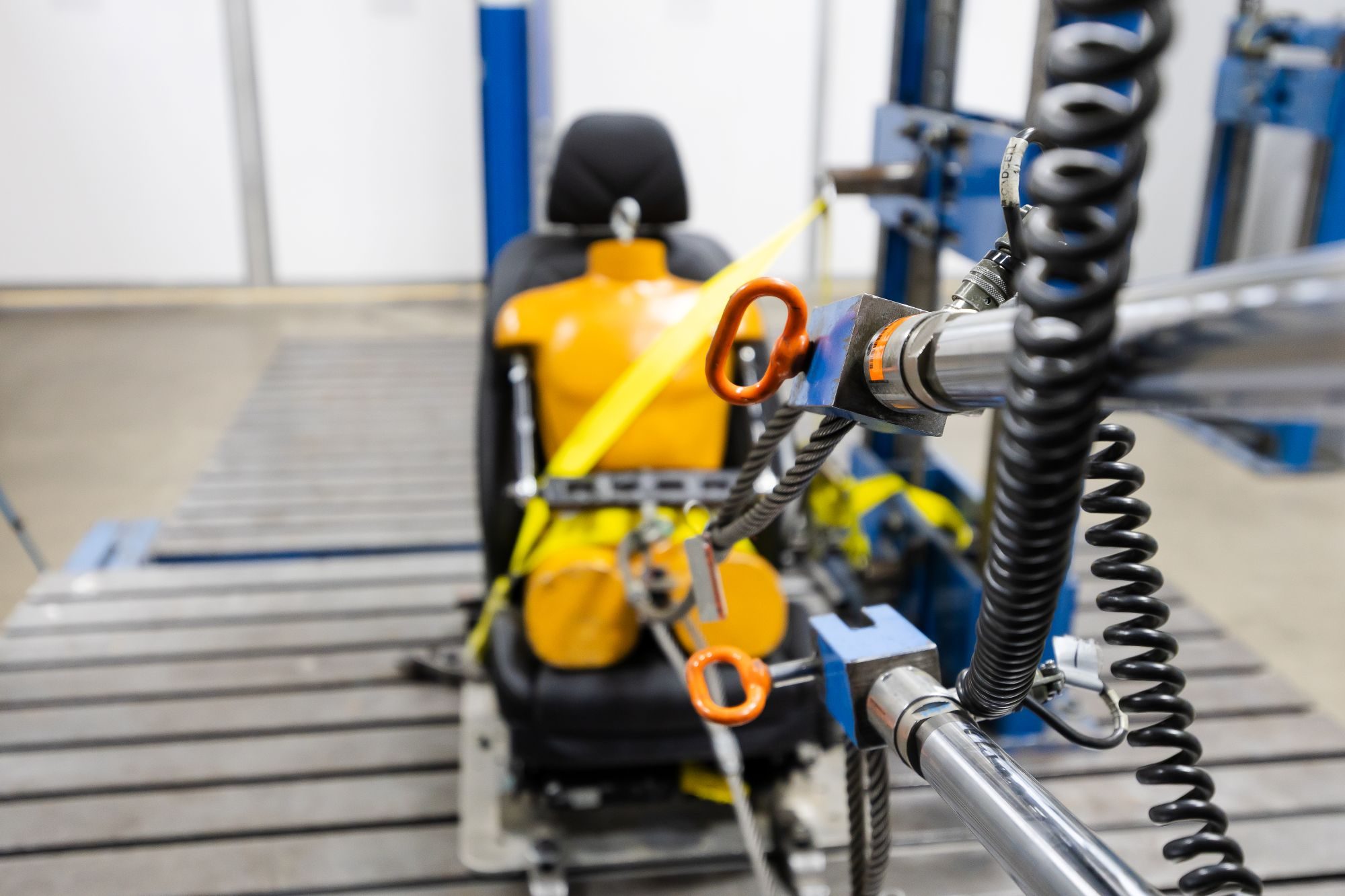

  • Use of MGA-developed FAD1 and FAD2 devices for force application
  • Verification that FAD devices are properly centered, parallel to, and within 10 mm of the seat reference plane
  • Confirmation that the torso portion of the FAD maintains proper contact with the seat back
  • Evaluation of potential interference between adjacent FAD1 devices
  • Application of substitution criteria per S5.4(1) when FAD interference prevents proper positioning

Test Standards

  • FMVSS 210 – Seat Belt Assembly Anchorages
