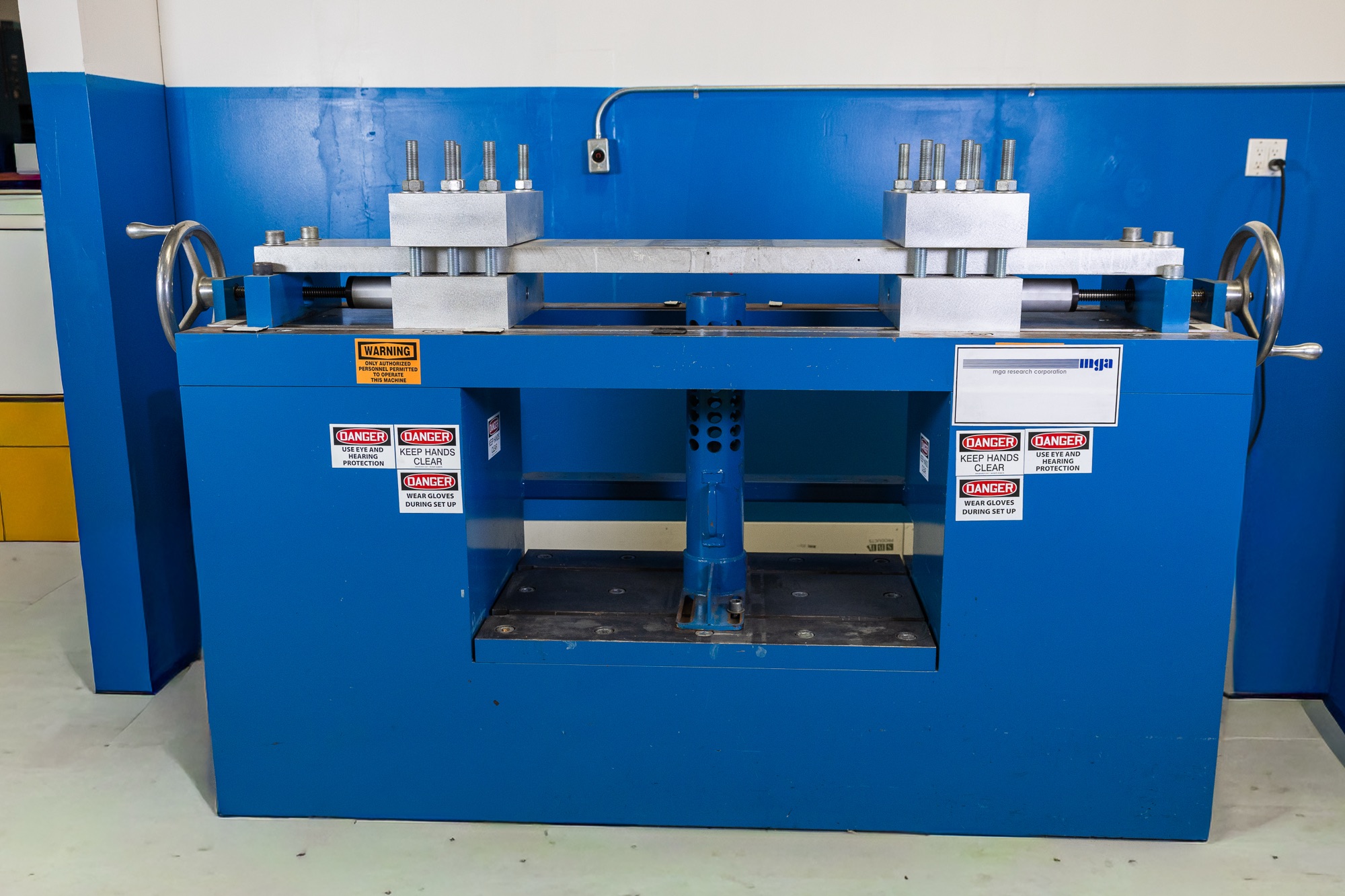

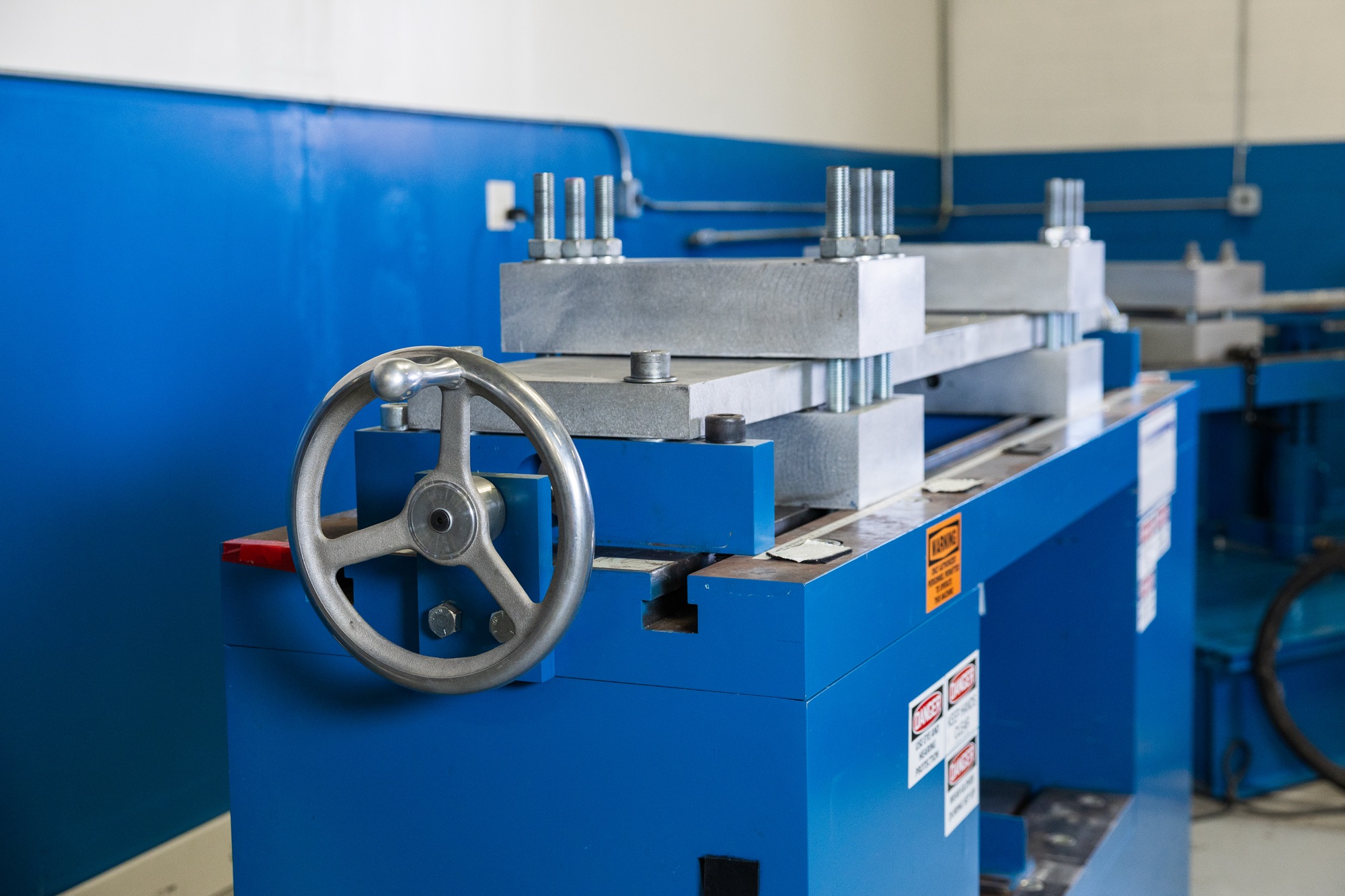

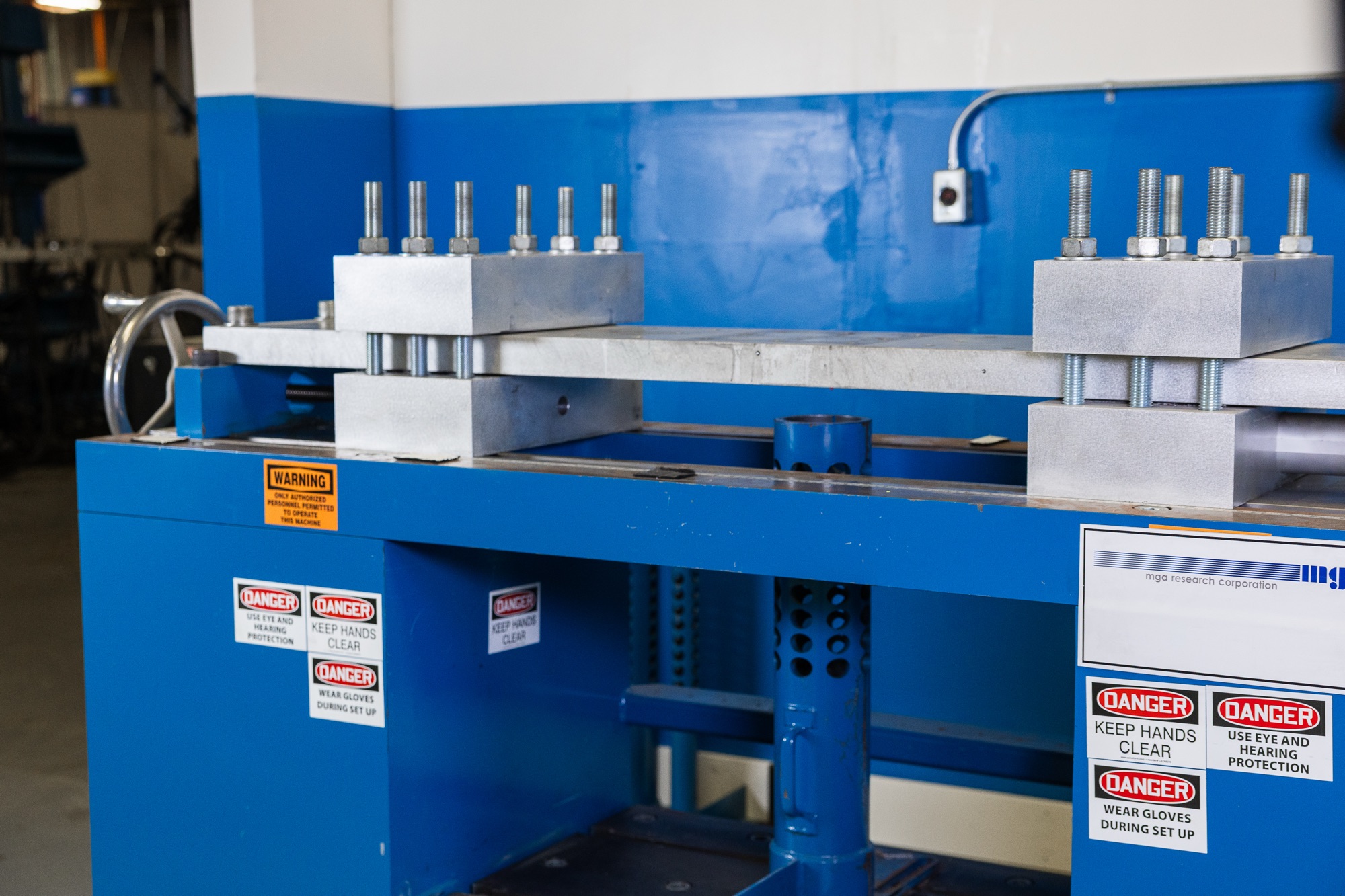

Mobile Pyroshock Table
Compact pyroshock system delivering the same tunable SRS profiles and high repeatability in a smaller footprint, ideal for facilities with limited floor space and test articles up to 50 pounds.

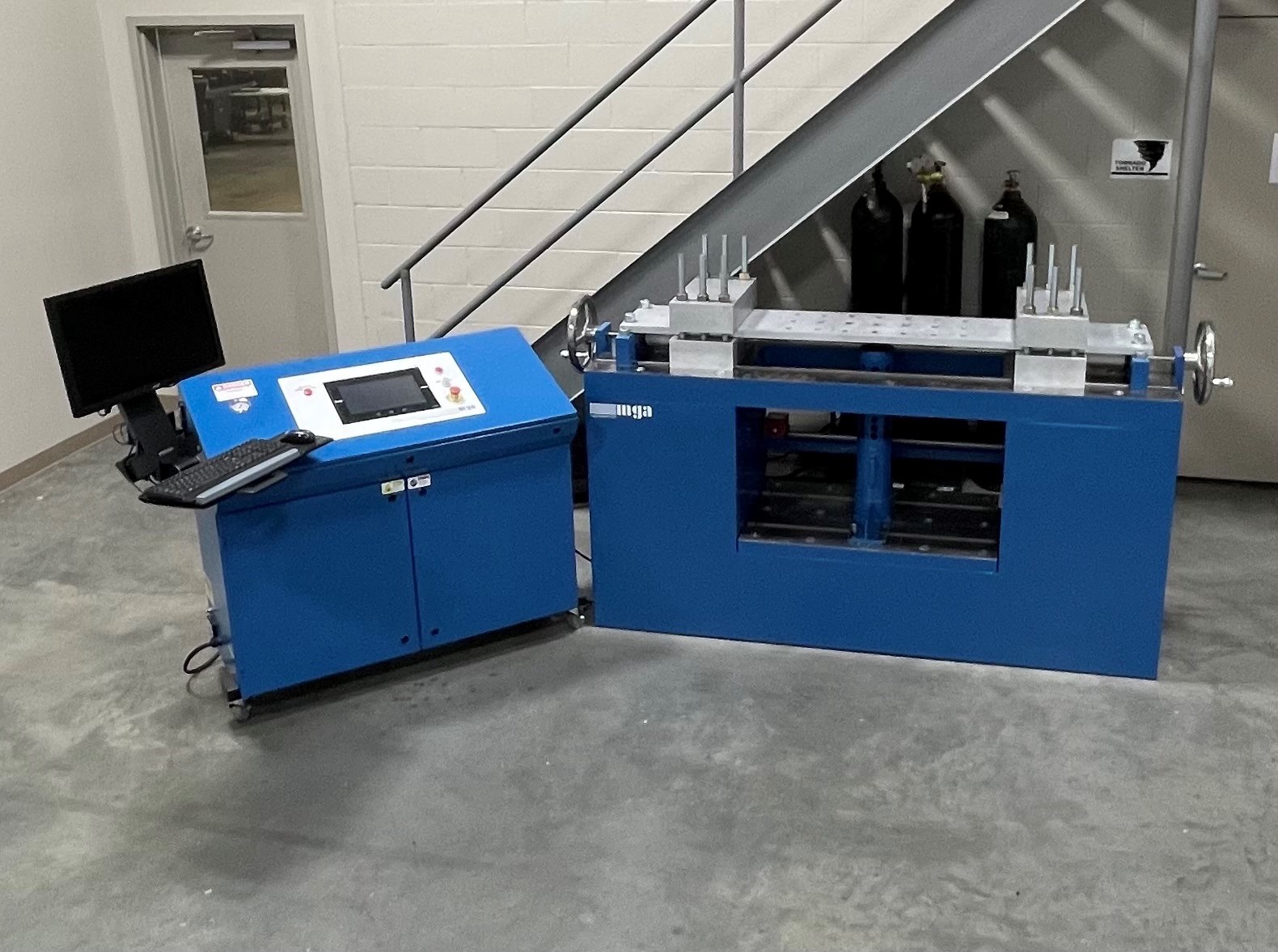

MGA’s Mobile Pyroshock Table encompasses all of the same shock technology that the Gen II Large Pyroshock Table uses to achieve a wide range of SRS profiles with high accuracy and repeatability, packaged in a smaller footprint. For business that require shock testing but who have limited floor space and test articles that do not exceed 50 lbs, MGA’s Mobile Pyroshock Table is the perfect fit. Whether you have a test program that requires you to operate within your own facility for security or logistics, or you would like to try our shock system before purchasing, the Mobile Pyroshock Table is also available for rentals.
Small Mass / Mobile Table System Features:
- For test articles up to ~ 500lbs (227kg)
- Knee frequency variable from ~ 400Hz to 3,000 Hz
- Amplitude of shock response up to 100,000g

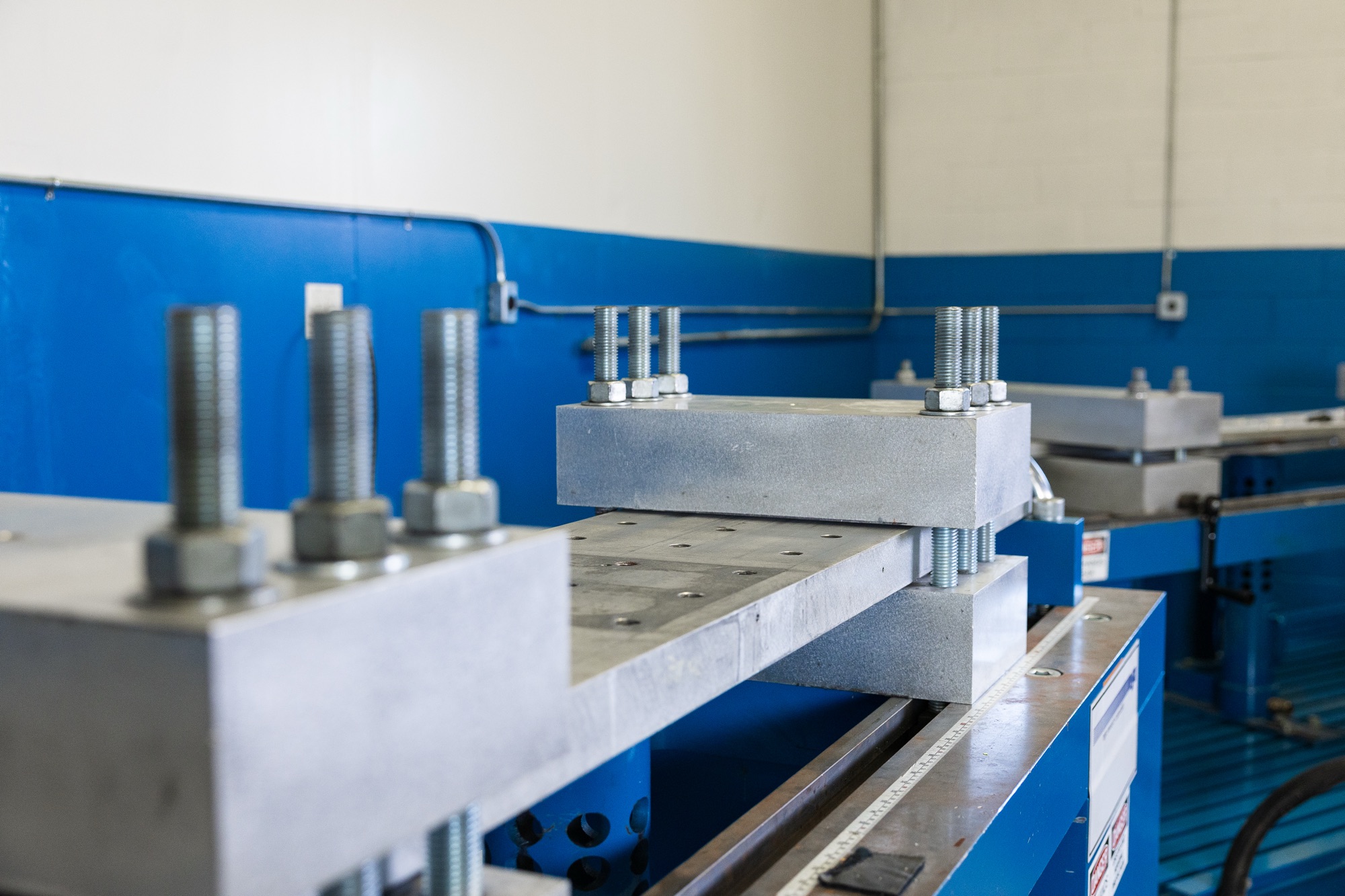

- 4 resonant beams with 1/2 - 13 inserts on a 4" bolt pattern
- Max Beam Size: 12"x72"
- Max Payload: 50+ lbs
